Taiwan Semiconductor

AEC-Q101準拠車載用小信号デバイスの提供開始

claire.chen — Thu, 12 Jun 2025 09:21:17 +0000

Taiwan Semiconductorは、AEC-Q101に準拠した小信号デバイスとしてショットキーバリアダイオード、スイッチングダイオード、ツェナーダイオード、トランジスタの提供を開始します。小信号ダイオードは、その高速スイッチング特性と小型パッケージの特長から車載電子機器で広く使用されています。また、逆極性保護やより効率的な信号スイッチングを可能にし、ADASやインフォテインメントのような高感度システムにおける電圧クランプに役立ちます。また、低VF特性を有していることから高性能な車載アプリケーションに最適です。

主な特長

AEC-Q101準拠
IATF 16949認定施設で製造
吸湿耐性レベル: J-STD-020　レベル1
RoHS準拠
ハロゲンフリー

アプリケーション

スイッチング回路
逆極性保護
電圧レギュレータ回路
デジタル関連機器
ADAS
車載インフォテインメント

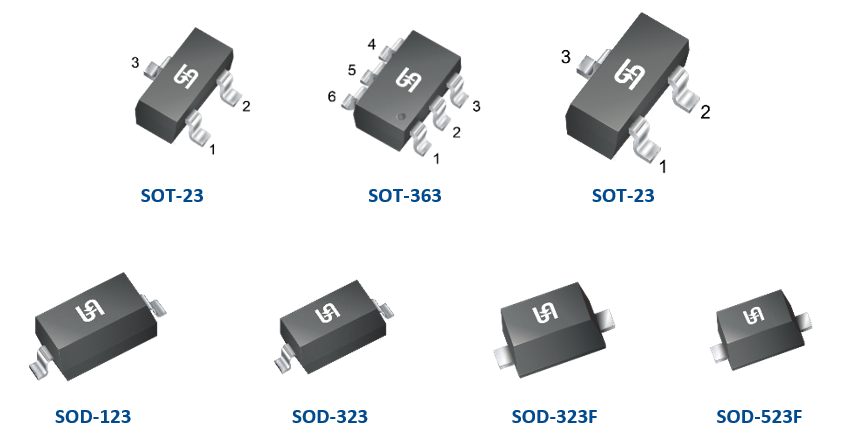

ショットキーバリアダイオードの製品ポートフォリオ

Part Number	Package	V_R (V)	I_R (μA)	I_F Max. (mA)	V_F max. (V)	t_rr max. (ns)
BAT54H	SOT-23	30	2	200	0.8	5
BAT54WH	SOT-323	30	2	200	0.8	5
BAT54SH	SOT-23	30	2	200	0.8	5
BAT54SWH	SOT-323	30	2	200	0.8	5
BAT54AH	SOT-23	30	2	200	0.8	5
BAT54CH	SOT-23	30	2	200	0.8	5
BAT54CWH	SOT-323	30	2	200	0.8	5
BAT42WSH	SOD-323	30	0.5	200	1	5
BAT43WSH	SOD-323	30	0.5	200	1	5
RB500V-40H	SOD-323	40	1	100	0.45	-
BAT54GWH	SOD-123	30	2	200	0.8	5
SD103AWH	SOD-123	40	5	350	0.6	10 *
SD103BWH	SOD-123	30	5	350	0.6	10 *
SD103CWH	SOD-123	20	5	350	0.6	10 *

* Typical value

スイッチングダイオードの製品ポートフォリオ

Part Number	Package	V_RRM (V)	I_R (μA)	I_F Max. (mA)	V_F Max. (V)	t_rr max. (ns)
BAS16H	SOT-23	100	0.5	215	1.25	4
BAS21H	SOT-23	250	0.1	200	1.25	50
BAV21WH	SOD-123	250	0.1	200	1.25	50
BAW56WH	SOT-323	100	0.5	150	1.25	4
BAV70WH	SOT-323	100	0.5	215	1.25	4
BAV99WH	SOT-323	100	0.5	150	1.25	4
BAV70H	SOT-23	100	0.5	215	1.25	4
BAV99H	SOT-23	100	0.5	215	1.25	4
BAW56H	SOT-23	100	0.5	215	1.25	4
1N4148WTH	SOD-523F	100	0.5	150	1.25	4
1N4148WH	SOD-123	100	0.5	150	1.25	4
1N4148WSH	SOD-323	100	0.5	150	1.25	4
BAV23CH	SOT-23	250	0.1	225	1.25	50
BAV23SH	SOT-23	250	0.1	225	1.25	50

ツェナーダイオードの製品ポートフォリオ

Part Number	Package	Tolerance	P_D (mW)	V_Z (V)	I_Z Max. (mA)
BZX585BxxxH Series	SOD-523F	2%	200	2.4V~24V	5
				27V~51V	2
BZT52BxxxSH series	SOD-323	2%	200	2.4V~24V	5
				27V~75V	2
BZX84CxxxH Series	SOT-23	5%	300	2.4V~24V	5
				27V~39V	2
MMSZ52xxxBH series	SOD-123	5%	500	2.4V~12V	20
				13V~75V	<9.5
BZX84JBxxxH series	SOD-323F	2%	550	2.4V~24V	5
				27V~75V	2

トランジスタの製品ポートフォリオ

Part Number	Package	V_R (V)	V_CBO (V)	V_CEO (V)	I_C (mA)	hFE
BC817-25H	SOT-23	NPN	50	45	500	160~400
BC817-25WH	SOT-323		50	45	500	160~400
BC817-40H	SOT-23		50	45	500	250~600
BC817-40WH	SOT-323		50	45	500	250~600
BC846BH	SOT-23		80	65	100	200/290/450
BC846BSH	SOT-363		80	65	100	200/290/450
BC846BWH	SOT-323		80	65	100	200/290/450
BC847BH	SOT-23		50	45	100	200/290/450
BC847BWH	SOT-323		50	45	100	200/290/450
BC847CH	SOT-23		50	45	100	420/520/800
BC847CWH	SOT-323		50	45	100	420/520/800
BC847SH	SOT-363		50	45	100	420/520/800
MMBT2222AH	SOT-23		75	40	600	100~300
MMBT3904H	SOT-23		60	40	200	100~300
BC807-25H	SOT-23	PNP	-50	-45	-500	160~400
BC807-25WH	SOT-323		-50	-45	-500	160~400
BC807-40H	SOT-23		-50	-45	-500	250~600
BC807-40WH	SOT-323		-50	-45	-500	250~600
BC856BH	SOT-23		-80	-65	-100	220~475
BC856BSH	SOT-363		-80	-65	-100	220~475
BC856BWH	SOT-323		-80	-65	-100	220~475
BC857BH	SOT-23		-50	-45	-100	220~475
BC857CH	SOT-23		-50	-45	-100	420~800
BC857SH	SOT-363		-50	-45	-200	125~630
BC857WH	SOT-323		-50	-45	-100	125~800
MMBT2907AH	SOT-23		-60	-60	-800	100~300
MMBT3906H	SOT-23		-40	-40	-200	100~300

The post AEC-Q101準拠車載用小信号デバイスの提供開始 first appeared on Taiwan Semiconductor.

1200V & 1600V High Efficiency Rectifier Extends High Voltage to Automotive Surface Mounted Package

claire.chen — Tue, 03 Jun 2025 01:00:39 +0000

Taiwan Semiconductor, (TSC), a global supplier of discrete power electronics devices, LED drivers, analog ICs and ESD protection devices, announces additional 1200V & 1600V High Efficiency rectifiers in industry standard packages.

The parts are targeted for bootstrap and de-saturate applications for IGBT or MOSFET gate drivers in high voltage battery systems of EVs. Additional applications include alternative energy systems, metering, lighting and rectification in HV power systems.

Key Features

Low C_J
Fast t_rr -75ns max
Environmental compliance
T_J 175℃ max.
Industry standard packages

Applications

Bootstrapping
De-saturate
Snubber – clamping
Freewheeling
HV rectification
Protection – HV blocking diode

Product Portfolio

Part Number	Package	V_RRM (V)	I_F (A)	V_F Max. (V)	t_rr Max.(ns)	I_FSM (A)	T_J Max (°C)
HS1Q	SMA	1200	1	1.9	75	35	175
HS1QH	SMA	1200	1	1.9	75	35	175
HS1QB	SMB	1200	1	1.9	75	35	175
HS1QBH	SMB	1200	1	1.9	75	35	175
HS1QFSNEW	SOD-128	1200	1	1.9	75	35	175
HS1QFSHNEW	SOD-128	1200	1	1.9	75	35	175
HS1QALNEW	Thin SMA	1200	1	1.9	75	35	175
HS1QALHNEW	Thin SMA	1200	1	1.9	75	35	175
HS1YNEW	SMA	1600	1	3.6	75	30	150
HS1YHNEW	SMA	1600	1	3.6	75	30	150
HS1YBNEW	SMB	1600	1	3.6	75	30	150
HS1YBHNEW	SMB	1600	1	3.6	75	30	150

The post 1200V & 1600V High Efficiency Rectifier Extends High Voltage to Automotive Surface Mounted Package first appeared on Taiwan Semiconductor.

Automotive Bi-directional ESD Protection Diode in SOT-23 package

claire.chen — Fri, 11 Apr 2025 06:38:47 +0000

The TESDA24VB28P2CX is Bidirectional ESD-rated clamping cell to protect power interfaces, control line, or low speed data line in an electronic system. The capacitance C_J must be less than 100 pF to maintain signal integrity at the maximum data rate of 20 kbit/s. To minimize the total impact of the diode on the system, C_J should be smaller than 30 pF. It has been specifically designed to protect sensitive electronic components connected to power and control lines from over-voltage damage caused by Electrostatic Discharging (ESD) and Lightning.

Key Features

AEC-Q101 qualified
ESD protection for 2 lines with bidirectional
IEC61000-4-2 (ESD): ±30kV (air), ±30kV(contact)
IEC61000-4-5 (Lightning): 5A (8/20μs)
Suitable for 24V and below operating voltage
Protect I/O line or power line

Applications

In-vehicle network lines
Industrial control systems
CAN bus
HVAC systems

Product Portfolio

Part Number	Package	V_WM	C_J max	ESD robustness (IEC61000-4-2)	IPPM (at tp= 8/20μs)
TESDA24VB28P2CX	SOT-23	24V	28pF	30KV	5A

The post Automotive Bi-directional ESD Protection Diode in SOT-23 package first appeared on Taiwan Semiconductor.

2025 electronica

Carol Chang — Wed, 02 Apr 2025 03:35:12 +0000

Dear Customers and Partners, We cordially invite you to attend Electronica China 2025 in Shanghai and visit the TSC Taiwan Semiconductor booth to explore the latest technologies and innovative applications in the electronics industry with us.

Exhibition Information:

Date: April 15, 2025 – April 17, 2025
Location: Shanghai New International Expo Center (SNIEC)
Booth Number: N4.300

Exhibition Highlights:

[New Product/Technology 1] —— [SUPER CLAMP TVS Low Clamping TVS]
[New Product/Technology 2] —— [PerFET MOSFET PerFET Field Effect Transistor]
[New Product/Technology 3] —— [SIC SKY Silicon Carbide Schottky]

We look forward to in-depth exchanges with you at the exhibition and to jointly explore industry trends and market opportunities! Please contact us to schedule a meeting! WeChat Official Account: 台湾半导体TSC-瀚科

The post 2025 electronica first appeared on Taiwan Semiconductor.

Automotive Bi-directional ESD Protection Diode

claire.chen — Mon, 31 Mar 2025 02:34:29 +0000

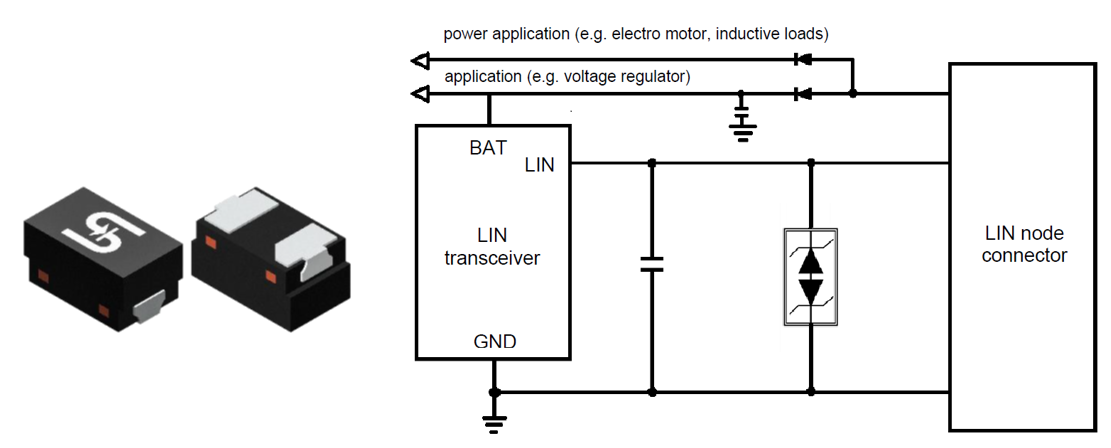

The TESDA24VB17P1Q1/TESDA24VB17P1M3 is designed to protect one line against system ESD Lightning pulses by clamping it to an acceptable reference. It provides bidirectional protection.

The usage of the TESDA24VB17P1Q1 is in protected line, such as data line, control line, or power line. To minimize parasitic inductance in the board traces, all path lengths connected to the pins of TESDA24VB17P1Q1/TESDA24VB17P1M3 should be kept as short as possible.

Key Features

AEC-Q101 qualified
ESD protect for 1 line with bidirectional
Suitable for 24V and below operating voltage
Protect I/O line or power line.

Applications

In-vehicle network lines
Industrial control systems
CAN bus
HVAC systems

Product Portfolio

Part number	Package	V_WM	C_J max	ESD robustness (IEC61000-4-2)	IPPM (at tp= 8/20μs)
TESDA24VB17P1Q1	DFN1006-2LW	24V	17pF	30KV	5A
TESDA24VB17P1M3	SOD-323	24V	17pF	30KV	5A

The post Automotive Bi-directional ESD Protection Diode first appeared on Taiwan Semiconductor.

600V Low Loss rectifiers in SMD and bridge packaging

claire.chen — Fri, 28 Mar 2025 01:00:24 +0000

Taiwan Semiconductor (TSC), a global supplier of discrete power electronics devices, LED drivers, analog ICs and ESD protection devices, announces 600V low loss rectification for power electronics systems.

The current ranges are from 15A to 45A in Bridge configurations and 10 to 30A with ThinDPAK and D2PAK-D packages. The low Vf reduces conduction loss to increase efficiency and power density. TSC provides SPICE, thermal and 3D mechanical models on our website to simplify designs. Target applications range from AC/DC converters in bridge, totem pole or bridgeless topologies for mains connected power electronics such as Server power, Telecom power and Charging systems.

Key Features

Planar technology
AEC-Q101 qualified
Low Vf for high efficiency
Low leakage current
# E-326243 UL certification for Bridge
T_JMax. 175℃

Applications

AC to DC converters
Totem pole topologies
Bridgeless topologies
EV and charging systems
Industrial power systems

Product Portfolio

Part Number	Package	Conf.	V_RRM (V)	I_F (A)	V_F Max. (V)	I_FSM (A)	T_J Max (°C)	Automotive
PLAD10JH	ThinDPAK	Single	600	10	1	260	175	Yes
PLDS20JH	D2PAK-D	Single	600	20	1	390	175	Yes
PLDS30JH	D2PAK-D	Single	600	30	1	450	175	Yes
PLAD10J	ThinDPAK	Single	600	10	1	260	175	No
PLDS20J	D2PAK-D	Single	600	20	1	390	175	No
PLDS30J	D2PAK-D	Single	600	30	1	450	175	No
GBUL15J	GBU	Quad	600	15	0.9@7.5A	280	175	No
GBUL25J	GBU	Quad	600	25	0.92@12.5A	390	175	No
GBJL15J	TS-6P	Quad	600	15	0.9@7.5A	280	175	No
GBJL25J	TS-6P	Quad	600	25	0.92@12.5A	390	175	No
GBJL45J	TS-6P	Quad	600	45	0.95@22.5A	620	175	No

The post 600V Low Loss rectifiers in SMD and bridge packaging first appeared on Taiwan Semiconductor.

Automotive Small-signal MOSFET

claire.chen — Thu, 27 Mar 2025 01:00:32 +0000

Key Features

AEC-Q101 qualified
Manufactured in IATF 16949 certified facilities
Advanced trench cell design
ESD protected (HBM >2kV)
Moisture sensitivity level: level 1, per J-STD-020
RoHS Compliant
Halogen-free

Applications

General purpose switching circuits
High-speed line drivers
Low-side load switches
Relay driver
ADAS system
In Vehicle Infotainment
Drop-in replacement for industry standard commercial versions

Product Portfolio

Part Number	Package	Type	Config	ESD	BV_DS (V)	V_GS (V)	I_D (mA)	V_GS(TH) (V)	R_DS(ON) typ (Ω) @10V_GS	R_DS(ON) typ (Ω) @4.5V_GS
TQM2N7002KCX	SOT-23	N-MOS	Single	≧ 2KV	60	±20	370	0.8 ~ 2.5	1.2	1.5
TQM2N7002KCU	SOT-323		Single	≧ 2KV	60	±20	320	0.8 ~ 2.5	1.2	1.5
TQM2N7002KDCU6	SOT-363		Dual	≧ 2KV	60	±20	330	0.8 ~ 2.5	1.2	1.5
TQM138KCX	SOT-23		Single	≧ 2KV	60	±20	360	0.5 ~ 1.5	1.2	1.3
TQM138KCU	SOT-323		Single	≧ 2KV	60	±20	310	0.5 ~ 1.5	1.2	1.3
TQM138KDCU6	SOT-363		Dual	≧ 2KV	60	±20	320	0.5 ~ 1.5	1.2	1.3
TQM123KCX	SOT-23		Single	≧ 2KV	100	±20	170	1.5 ~ 2.5	3.5	4.3
TQM84KCX	SOT-23	P-MOS	Single	≧ 2KV	-60	±20	-190	-0.8 ~ -2.5	1.9	2.3
TQM84KCU	SOT-323		Single	≧ 2KV	-60	±20	-160	-0.8 ~ -2.5	1.9	2.3
TQM84KDCU6	SOT-363		Dual	≧ 2KV	-60	±20	-170	-0.8 ~ -2.5	1.9	2.3
TQM2N7002CX	SOT-23	N-MOS	Single	Non ESD	60	±20	370	0.8 ~ 2.5	1.2	1.5
TQM2N7002CU	SOT-323		Single		60	±20	320	0.8 ~ 2.5	1.2	1.5
TQM2N7002DCU6	SOT-363		Dual		60	±20	330	0.8 ~ 2.5	1.2	1.5

The post Automotive Small-signal MOSFET first appeared on Taiwan Semiconductor.

2025 PCIM Europe – Hub for Power Electronics

claire.chen — Thu, 20 Mar 2025 03:28:29 +0000

Taiwan Semiconductor has been successfully cooperating with Schukat electronic as one of our longest-standing distribution partners for more than 20 years!

This year we will be at the PCIM Europe Exhibition and Conference together from May 6 to 8, 2025 in Nuremberg, Germany.

PCIM Europe – Hub for Power Electronics
As the leading international exhibition and conference for Power Electronics, Intelligent Motion, Renewable Energy and Energy Management, the PCIM Europe is the international meeting point for the industry. At the international event for power electronics and its applications, representatives from industry and science meet, trends and developments are presented to the public for the first time, and the entire value chain is represented – from components to intelligent systems.

We look forward to meeting you at our shared booth #5-402 in hall 5. See you soon!

The post 2025 PCIM Europe – Hub for Power Electronics first appeared on Taiwan Semiconductor.

PerFET™ 80V and 100V MOSFET in PDFN56U Product Family

claire.chen — Fri, 07 Mar 2025 01:00:08 +0000

Taiwan Semiconductor introduces PerFET 80V and 100V technology in the PDFN56U (5mm x 6mm) single and dual packages for high power, high switching frequency and high-performance requirement automotive applications. A portfolio of 18 items, including both normal-level (10V) and logic-level (5V) gate drive types, enables customers to select the best-fit product for their design. All of this enables the best-in-class FOM (RDS(on) * Qg) and Performance in the market.

The PDFN56U wettable flank package offers improved solder joint quality and enhanced AOI accuracy. Additionally, it is highly footprint-compatible with the majority of 5mm x 6mm packages on the market.

Key Features

AEC-Q101 qualified
Best-in-class FOM (R_DS(ON) * Q_g)
Optimized R_DS(ON) for low conduction losses
Low gate charge for reduced switching losses
175°C junction temperature (T_J)
Wettable flank enhances AOI accuracy

Applications

48V Automotive applications
SMPS, Server and Telecom power supplies
DC/DC converter
BLDC motor driver
E-fuse

Product Portfolio

Part Number	Package	V_DS (V)	R_DS(on) @ 10V Typ. (mΩ)	V_GS(TH) (V)	I_D (A)	Q_g (nC) @ 10V
TQM048NH10LCR	PDFN56U	100	4.8	1.4 - 2.2	100	47
TQM048NH10CR	PDFN56U	100	4.8	2.4 - 3.6	100	35
TQM075NH10LCR	PDFN56U	100	7.5	1.4 - 2.2	100	36
TQM075NH10CR	PDFN56U	100	7.5	2.4 - 3.6	100	22
TQM100NH10LCR	PDFN56U	100	10	1.4 - 2.2	72	25
TQM100NH10CR	PDFN56U	100	10	2.4 - 3.6	72	20
TQM170NH10LCR	PDFN56U	100	17	1.4 - 2.2	50	17
TQM170NH10CR	PDFN56U	100	17	2.4 - 3.6	50	11
TQM240NH10LCR	PDFN56U	100	24	1.4 - 2.2	34	9.3
TQM240NH10CR	PDFN56U	100	24	2.4 - 3.6	34	8.1
TQM250NH10LDCR	PDFN56U Dual	100	25	1.4 - 2.2	31	10
TQM250NH10DCR	PDFN56U Dual	100	25	2.4 - 3.6	31	8.4
TQM058NH08LCR	PDFN56U	80	5.8	1.4 - 2.2	100	35
TQM063NH08CR	PDFN56U	80	6.3	2.4 - 3.6	100	27
TQM130NH08LCR	PDFN56U	80	13	1.4 - 2.2	54	17
TQM145NH08CR	PDFN56U	80	14.5	2.4 - 3.6	52	13
TQM210NH08LDCR	PDFN56U Dual	80	21	1.4 - 2.2	33	11
TQM230NH08DCR	PDFN56U Dual	80	23	2.4 - 3.6	31	9.1

The post PerFET™ 80V and 100V MOSFET in PDFN56U Product Family first appeared on Taiwan Semiconductor.

Automotive qualified, 22V-70V Load dump Uni-directional TVS

claire.chen — Tue, 25 Feb 2025 07:13:09 +0000

TSC TLDxAH series Uni-directional Load dump TVS packaged in TO-263AB that could meet ISO7637-2 and ISO 16750-2 criteria. It is compatible with High-end circuits where low leakage current and high junction temperature are required to provide reliability and stability over time.

Key Features

AEC-Q101 qualified
Low leakage current: 1μA at 25 °C
T_J=175 °C capability suitable
Meets ISO7637-2 and ISO16750-2 surge specifications
Meets IEC 61000-4-2 (Level: 4) / ISO 10605 (Level: L4)

Product Portfolio

Part Number	Package	V_WM (V)	V_BR (V)	T_J Max (°C)
TLD26AH – TLD82AH	TO-263AB (D²-PAK)	22 - 70	26 – 82	175

The post Automotive qualified, 22V-70V Load dump Uni-directional TVS first appeared on Taiwan Semiconductor.

Taiwan Semiconductor

AEC-Q101準拠 車載用小信号デバイスの提供開始

主な特長

アプリケーション

ショットキーバリアダイオードの製品ポートフォリオ

スイッチングダイオードの製品ポートフォリオ

ツェナーダイオードの製品ポートフォリオ

トランジスタの製品ポートフォリオ

1200V & 1600V High Efficiency Rectifier Extends High Voltage to Automotive Surface Mounted Package

Key Features

Applications

Product Portfolio

Automotive Bi-directional ESD Protection Diode in SOT-23 package

Key Features

Applications

Product Portfolio

2025 electronica

Automotive Bi-directional ESD Protection Diode

Key Features

Applications

Product Portfolio

600V Low Loss rectifiers in SMD and bridge packaging

Key Features

Applications

Product Portfolio

Automotive Small-signal MOSFET

Key Features

Applications

Product Portfolio

2025 PCIM Europe – Hub for Power Electronics

PerFET™ 80V and 100V MOSFET in PDFN56U Product Family

Key Features

Applications

Product Portfolio

Automotive qualified, 22V-70V Load dump Uni-directional TVS

Key Features

Product Portfolio

AEC-Q101準拠車載用小信号デバイスの提供開始
