Taiwan Semiconductor

New PerFET™ 40V, 80V and 100V Ultra-Low RDS(on) Automotive MOSFETs in PDFN56U Package

claire.chen — Wed, 14 Oct 2026 03:09:21 +0000

Taiwan Semiconductor expands its PerFET automotive MOSFET portfolio with eight new 40V, 80V and 100V devices in the compact PDFN56U (5mm × 6mm) package. The new products are designed for automotive power applications requiring low conduction loss, high current capability, and high-power density.

Key features include ultra-low R_DS(on), with values down to 1.1mΩ at 40V, 3.6mΩ at 80V, and 3.5mΩ at 100V, together with both logic-level and normal-level gate drive options. These new devices also adopt Source Clip bonding technology, helping reduce package resistance and increase current capability up to 175A. The higher current capability supports lower conduction loss, improved thermal margin, and higher power handling in demanding applications such as DC/DC converters, motor drives, pumps, fans, and other high-current loads.

The PDFN56U wettable flank package supports reliable solder joint inspection and enhanced AOI capability, while its industry-standard 5mm × 6mm footprint enables easy adoption into existing automotive power designs.

Product Portfolio

Part Number	V_DS (V)	R_DS(on) @ 10V Max. (mΩ)	V_GS(TH) (V)	I_D (A)	Package
TQM011NH04LCR	40	1.1	1.4 - 2.2	175	PDFN56U
TQM011NH04CR	40	1.1	2.4 - 3.6	175
TQM036NH08LCR	80	3.6	1.4 - 2.2	161
TQM038NH08CR	80	3.8	2.4 - 3.6	161
TQM035NH10LCR	100	3.5	1.4 - 2.2	175
TQM037NH10CR		3.7	2.4 - 3.6	175
TQM043NH10LCR		4.3	1.4 - 2.2	143
TQM045NH10CR		4.5	2.4 - 3.6	141

PerFET™ 60V Power MOSFETs for Automotive

claire.chen — Wed, 07 Oct 2026 03:26:18 +0000

Taiwan Semiconductor introduces its PerFET 60V MOSFET technology in PDFN56U (5mm × 6mm) single and dual packages for automotive applications requiring high power density and high switching frequency. The portfolio includes 12 devices with both normal-level (10V) and logic-level (5V) gate drive options, offering optimized R_DS(on) × Q_g performance for a wide range of designs.

Based on advanced 60V Shielded Gate Trench (SGT) technology, the PerFET MOSFETs feature low R_DS(on), low gate charge, and fast switching performance, supporting high-efficiency DC/DC converters, motor drives, pumps, fans, and other high-current automotive loads.

The PDFN56U wettable flank package supports reliable solder joint inspection and improved AOI capability. Its 5mm × 6mm footprint also offers broad compatibility with commonly used industry-standard packages.

Key Features

AEC-Q101 qualified
Best-in-class FOM (R_DS(on) × Q_g)
Optimized R_DS(on) for low conduction losses
Low gate charge for reduced switching losses
175°C junction temperature (T_J)
Wettable flank enhanced AOI accuracy

Applications

12V & 24V Automotive applications
SMPS, Server and Telecom power supply
DC/DC converter
BLDC motor driver

Product Portfolio

Part Number	V_DS (V)	R_DS(on) @ 10V Max. (mΩ)	V_GS(TH) (V)	I_D (A)	Q_g (nC) @ 10V	Package
TQM026NH06LCR	60	2.6	1.4 - 2.4	100	76	PDFN56U
TQM027NH06CR		2.7	2.4 - 3.6	100	84
TQM037NH06LCR		3.7	1.4 - 2.4	100	54
TQM038NH06CR		3.8	2.4 - 3.6	100	52
TQM050NH06LCR		5	1.4 - 2.4	81	41
TQM052NH06CR		5.2	2.4 - 3.6	81	40
TQM080NH06LCR		8	1.4 - 2.4	54	25
TQM085NH06CR		8.5	2.4 - 3.6	54	24
TQM115NH06LCR		11.5	1.4 - 2.4	49	17
TQM120NH06CR		12	2.4 - 3.6	48	16
TQM130NH06LDCR		13	1.4 - 2.4	40	17.2	PDFN56U Dual
TQM130NH06DCR		13	2.4 - 3.6	40	16.2	PDFN56U Dual

2026 electronica

claire.chen — Wed, 26 Aug 2026 06:53:08 +0000

Meet Taiwan Semiconductor at electronica 2026 in Munich

Taiwan Semiconductor is excited to be exhibiting at electronica 2026, the world’s leading trade fair and conference for electronics, taking place November 10–13, 2026, at Messe München in Munich, Germany.

Come and discover our latest semiconductor solutions and connect with the Taiwan Semiconductor team. We’ll be showcasing a selection of our products and technologies designed to meet the evolving needs of the electronics industry.

Find us in Hall C3, Booth 330. Stop by, meet our team, explore our products, and discover how Taiwan Semiconductor can support your next project.

We look forward to welcoming you to Munich and seeing you at electronica 2026!

Questions or want to schedule a meeting?
Contact us at: munich@tsceu.com

Introducing TSC’s New Tj 175°C 150V & 200V Trench Schottky Rectifiers in TO-277A

claire.chen — Thu, 23 Jul 2026 01:00:40 +0000

Taiwan Semiconductor’s new AEC-Q101 qualified 150V and 200V Trench Schottky Rectifiers deliver high current capabilities (3A to 15A) and an ultra-low forward voltage down to 0.78V in a compact TO-277A (SMPC4.6U) package. Perfect for SMPS, boost PFC circuits, polarity protection, and automotive or telecom freewheeling applications, they provide the superior efficiency and reliability required for next-generation designs.

Key Features

AEC-Q101 qualified
Max. junction temperature 175°C
Broad Current Range: Ratings from 3A to 15A
Low forward voltage
MSL moisture sensitivity level of 1, per J-STD-020
RoHS Compliant
Halogen-Free

Applications

Switching mode power supply (SMPS) 12V ~ 48V range secondary-side output rectification
Boost PFC circuit
Freewheeling diode in automotive, telecom and DC-DC converter
Polarity protection diode

Product Portfolio

Part Number	Package	V_RRM (V)	I_F (A)	V_F @T_A=25°C		I_R @ T_A= 25°C Max. (μA)	I_R @ T_A= 125°C Max. (mA)	I_FSM @ 8.3 ms (A)	C_J (pF)
Part Number	Package	V_RRM (V)	I_F (A)	Typ. (V)	Max. (V)	I_R @ T_A= 25°C Max. (μA)	I_R @ T_A= 125°C Max. (mA)	I_FSM @ 8.3 ms (A)	C_J (pF)
TSUP3S150H	TO-277A (SMPC4.6U)	150	3	0.78	0.85	10	5	80	140
TSUP5S150H			5	0.78	0.85	10	5	125	248
TSUP8S150H			8	0.78	0.85	10	5	200	395
TSUP10S150H			10	0.8	0.86	10	5	200	395
TSUP12S150H			12	0.78	0.85	20	5	285	520
TSUP15S150H			15	0.76	0.82	30	6	400	840
TSUP8S200H		200	8	0.82	0.88	10	5	200	332
TSUP10S200H			10	0.85	0.9	10	5	200	332
TSUP12S200H			12	0.83	0.89	20	5	285	446
TSUP15S200H			15	0.8	0.86	30	6	400	782

2026 electronica Shanghai

claire.chen — Fri, 22 May 2026 09:22:58 +0000

尊敬的客户与合作伙伴，TSC台湾半导体深耕半导体领域多年，致力于为客户提供高品质的产品与解决方案。在本次2026慕尼黑上海电子展(electronica Shanghai 2026)中，我们将重点展示在汽车电子、工业控制、AI相关等领域的创新成果与技术突破。

展会信息:

日期：2026年7月1日–2026年7月3日
地点：上海新国际博览中心（SNIEC）
展位号：N4.300

我们期待与您在展会现场深入交流，共同探讨电子产业的市场机遇与合作可能。如需提前预约会谈或获取更多展会信息，欢迎通过以下方式联系我们。

微信公众号：台湾半导体TSC-瀚科

期待与您在上海相见！

Automotive, AEC-Q101 Uni-directional ESD Protection Diodes in DFN1010-3LW

claire.chen — Thu, 21 May 2026 09:18:19 +0000

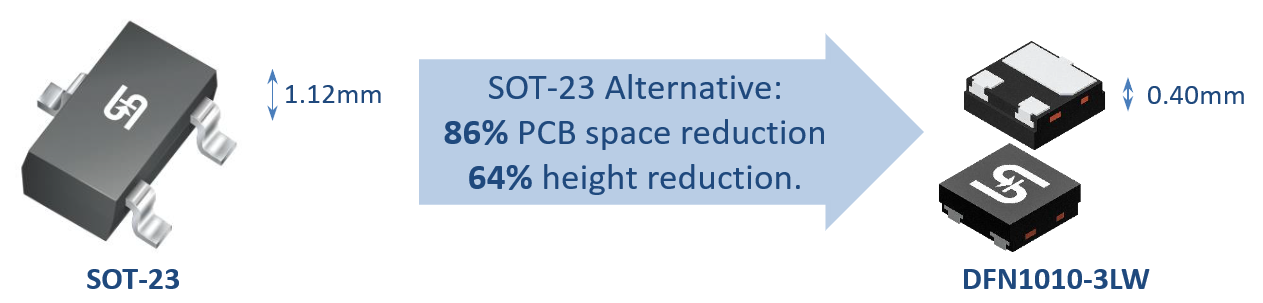

ESD diodes in the DFN1010-3LW package provide a compact, low-profile, and high-performance protection solution for next-generation electronic designs. Compared with the traditional SOT-23 package, the DFN1010-3LW package significantly reduces PCB footprint and package height, helping customers save board space and achieve thinner, more compact, and higher-density product designs.

The compact package also allows the ESD diode to be placed closer to the connector or protected IC, improving ESD current diversion efficiency while providing greater layout flexibility. In addition, the leadless design helps reduce lead bending and coplanarity-related issues, supporting stable SMT assembly and improved product reliability.

Overall, ESD diodes in the DFN1010-3LW package not only serve as a space-saving alternative to SOT-23, but also offer an upgraded protection solution for compact and high-reliability electronic applications.

Product Portfolio

Part Number	V_WM (V)	C_J (pF) Max.	ESD robustness (IEC61000-4-2) (kV)	I_PPM at tp = 8/20μs (A)
TESDA13VU1052Q3	13	105	30	1.9
TESDA22VU40P2Q3	22	40		4.2
TESDA22VU60P2Q3	22	60		1
TESDA26VU55P2Q3	26	55		0.8

Automotive 45–120V Trench Schottky Rectifiers Rated to TJ 175°C in ThinDPAK and TO-247AD Packages

claire.chen — Wed, 22 Apr 2026 03:48:10 +0000

Taiwan Semiconductor is introducing its latest Tj 175°C-rated Trench Schottky Rectifiers, now available in ThinDPAK and TO-247AD packages, delivering superior efficiency, thermal robustness, and system-level flexibility across automotive, industrial, and energy applications, enabling improved thermal performance in both compact and high-power designs. This release extends the existing 45–120V Trench Schottky portfolio with additional package options.

One Technology, Two Optimized Platforms

Key Features

AEC-Q101 qualified
Maximum junction temperature Tj 175°C
High surge current capability
Low power loss, high efficiency
ThinDPAK Moisture sensitivity level: level 1
RoHS Compliant
Halogen-free

Applications

DC/DC converter
SMPS secondary
PFC
Solar
EV OBC
Industrial PSU

Product Portfolio

Part Number	Package	I_F max (A)	Config.	V_R min (V)	T_J 25°C		T_J 125°C		T_J 25°C	T_J 125°C	T_J 25°C
Part Number	Package	I_F max (A)	Config.	V_R min (V)	V_F typ (V)	V_F max (V)	V_F typ (V)	V_F max (V)	I_R max (μA)	I_R max (mA)	I_FSM max (A) @ 8.3ms
TSAD10M45CH	ThinDPAK	5	Common Cathode	45	0.53	0.61	0.44	0.52	30	10	150
TSAD10M45H	ThinDPAK	10	Single		0.56	0.63	0.49	0.55	30	10	215
TSAD20M45CH	ThinDPAK	10	Common Cathode		0.56	0.63	0.49	0.58	30	10	260
TSAD20M45H	ThinDPAK	20	Single		0.58	0.63	0.51	0.56	30	15	410
TSAD35M45H	ThinDPAK	35	Single		0.6	0.64	0.56	0.6	200	60	470
TSAD10M60CH	ThinDPAK	5	Common Cathode	60	0.58	0.66	0.51	0.59	30	10	150
TSAD10M60H	ThinDPAK	10	Single		0.64	0.72	0.57	0.64	30	10	215
TSAD20M60CH	ThinDPAK	10	Common Cathode		0.64	0.72	0.57	0.64	30	10	260
TSAD20M60H	ThinDPAK	20	Single		0.63	0.7	0.59	0.66	30	15	410
TSAD35M60H	ThinDPAK	35	Single		0.71	0.75	0.65	0.69	200	60	470
TSAD10H100CH	ThinDPAK	5	Common Cathode	100	0.69	0.76	0.58	0.65	10	2	135
TSAD10H100H	ThinDPAK	10	Single		0.73	0.8	0.62	0.68	30	4	200
TSAD20H100CH	ThinDPAK	10	Common Cathode		0.73	0.8	0.62	0.68	30	4	240
TSAD20H100H	ThinDPAK	20	Single		0.73	0.81	0.63	0.7	30	6	380
TSAD35H100H	ThinDPAK	35	Single		0.81	0.87	0.71	0.78	30	8	420
TSH60H100CH	TO-247AD	60	Single		0.78	0.84	0.67	0.73	30	10	345
TSH80H100CH	TO-247AD	80	Single		0.76	0.82	0.66	0.72	30	20	440
TSAD10H120CH	ThinDPAK	5	Common Cathode	120	0.73	0.81	0.6	0.68	10	2	135
TSAD10H120H	ThinDPAK	10	Single		0.77	0.85	0.64	0.71	5	4	200
TSAD20H120CH	ThinDPAK	10	Common Cathode		0.64	0.72	0.57	0.64	30	10	240
TSAD20H120H	ThinDPAK	20	Single		0.75	0.84	0.65	0.7	30	6	380
TSAD35H120H	ThinDPAK	35	Single		0.82	0.89	0.73	0.79	30	8	420

DMEMS 2026

claire.chen — Wed, 18 Mar 2026 08:17:02 +0000

Taiwan Semiconductor to Exhibit at the Del Mar Electronics & Manufacturing Show 2026

Taiwan Semiconductor is pleased to announce its participation in the Del Mar Electronics & Manufacturing Show (DMEMS) 2026, taking place April 22–23, 2026, at the Del Mar Fairgrounds in San Diego, California.

The Del Mar Electronics & Manufacturing Show brings together engineers, designers, manufacturers, and industry professionals to explore the latest technologies in electronics design, testing, and manufacturing. The event provides an excellent platform for exchanging ideas and discovering innovative solutions across the electronics manufacturing ecosystem.

At the exhibition, Taiwan Semiconductor will showcase its portfolio of power discrete devices and protection solutions, including low-clamp TVS devices, advanced MOSFETs, rectifiers, and other high-performance components designed to support a wide range of industrial and electronics applications.

Visit us at Booth #313 to explore our latest technologies and connect with our technical and sales experts.

To attend DMEMS 2026, please register through the official Registration page.

We look forward to meeting you in San Diego and discussing how Taiwan Semiconductor solutions can support your next design.

For inquiries, please contact: sales@tscus.com

APEC 2026

claire.chen — Mon, 09 Feb 2026 03:14:37 +0000

Taiwan Semiconductor to Showcase Power Innovations at APEC 2026 in San Antonio

Taiwan Semiconductor is pleased to announce its participation in the IEEE Applied Power Electronics Conference and Exposition (APEC) 2026, taking place March 22–26, 2026, in San Antonio, Texas.

At this premier industry event, Taiwan Semiconductor will present its latest power semiconductor solutions, including new low-clamp TVS devices, advanced MOSFETs, and other high-performance technologies designed to support a wide range of power and protection applications.

Visit us at Booth #1119 to explore our newest innovations and connect with our technical and sales experts. We look forward to engaging with customers and partners and discussing how our solutions can support next-generation power designs.

To attend APEC 2026, please register via the official Conference Registration page.

For inquiries, please contact: sales@tscus.com

Automotive Bi-Directional ESD Protection Diode in DFN1006-2LW Package

claire.chen — Thu, 05 Feb 2026 04:01:54 +0000

The TESDA1L2B17P1Q1 is an ESD protection device designed for a single LIN bus signal line, providing effective immunity against electrostatic discharge and transient surge events. Typical LIN applications include seat control systems, door locking modules, mirror adjustment units, and sensor interfaces such as rain sensors.

The LIN bus employs a single-wire serial communication scheme with a maximum data rate of 20 kbit/s. The operating bus voltage is approximately equal to the vehicle supply voltage, typically around 14.4V in a 12V automotive system. External ESD protection on the LIN bus is recommended to enhance module ESD robustness, as the LIN line may be shorted to the battery and must withstand the maximum battery voltage.

To maintain signal integrity at 20 kbit/s, diode capacitance should be below 100 pF, with values under 30 pF preferred.

Key Features

AEC-Q101 qualified
Provide ESD protection for each channel to
IEC61000-4-2 (ESD): ±30kV (air), ±30kV(contact)
IEC61000-4-5 (Lightning): 3A (8/20μs)
Suitable for 15V/24V and below operating voltage
Protect I/O line or power line.

Product Portfolio

Part Number	Package	V_WM (V)	C_J (pF) Max.	ESD robustness (IEC61000-4-2) (kV)	I_PPM at tp = 8/20μs (A)
TESDA1L2B17P1Q1	DFN1006-2LW	15V/24V	17	30	3
