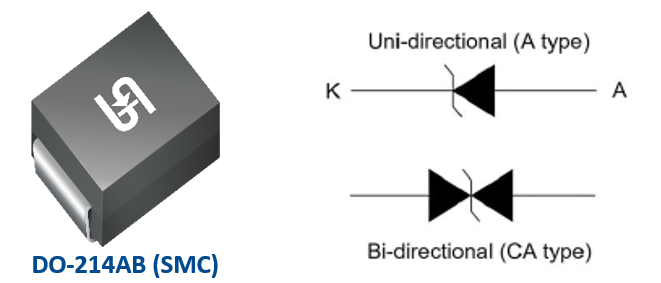

To ensure maximum safety and reliability against the harshest electrical events, Taiwan Semiconductor introduces a series of 5000W SMC Transient Voltage Suppressors for automotive applications. The new 5KSMCXX Series offers high energy absorption capabilities to effectively guard against surges caused by lightning strikes and switching power supplies. The SMC package not only facilitates surface mount assembly but also provides excellent thermal dissipation in high-power applications.
Key Features
- AEC-Q101 qualified
- Available in Uni- and Bi-directional configurations
- MSL Level 1
- Meets IEC 61000-4-2 Level 4
- Meets ISO 7637-2 (Pulse 1/2a/2b/3a/3b)
Applications
- Switching Mode Power Supply (SMPS)
- Motor for BLDC
- Lighting application
- Battery management system
- Automotive
Product Portfolio
| Part Number | Configuration | PPPM (W) | VWM (V) | VBR (V) |
| 5KSMC10AH – 5KSMC100AH | Uni-directional | 5000 | 10 - 100 | 12 – 117 |
| 5KSMC10CAH – 5KSMC100CAH | Bi-directional | 5000 | 10 - 100 | 12 – 117 |
