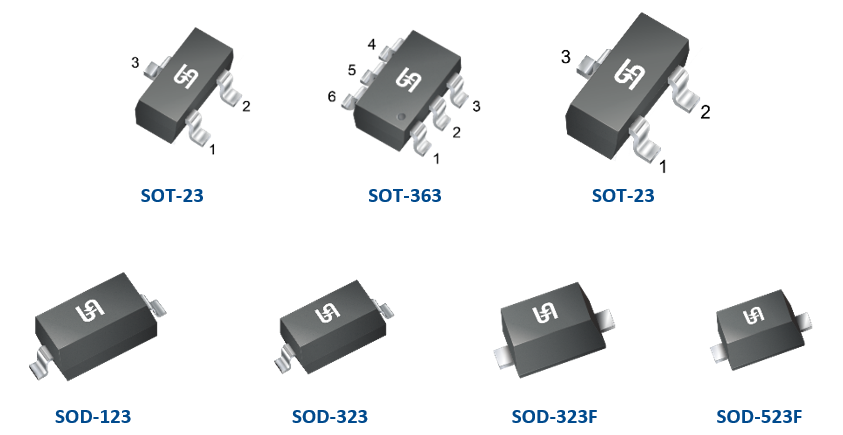

Taiwan Semiconductor are releasing the AEC-Q101 qualified small-signal product, Including Schottky diodes, switching diodes, Zener diodes, and bipolar transistors. Small signal diodes are widely used in automotive electronics for their fast switching and compact size. They provide reverse polarity protection, enable efficient signal switching, and help with voltage clamping in sensitive systems like ADAS and infotainment. Their low forward voltage drop and suitability high-performance automotive applications.

Taiwan Semiconductor,  (TSC), a global supplier of discrete power electronics devices, LED drivers, analog ICs and ESD protection devices, announces additional 1200V & 1600V High Efficiency rectifiers in industry standard packages.

The parts are targeted for bootstrap and de-saturate applications for IGBT or MOSFET gate drivers in high voltage battery systems of EVs.  Additional applications include alternative energy systems, metering, lighting and rectification in HV power systems.

The TESDA24VB28P2CX is Bidirectional ESD-rated clamping cell to protect power interfaces, control line, or low speed data line in an electronic system. The capacitance C_J must be less than 100 pF to maintain signal integrity at the maximum data rate of 20 kbit/s. To minimize the total impact of the diode on the system, C_J should be smaller than 30 pF.  It has been specifically designed to protect sensitive electronic components connected to power and control lines from over-voltage damage caused by Electrostatic Discharging (ESD) and Lightning.

The TESDA24VB17P1Q1/TESDA24VB17P1M3 is designed to protect one line against system ESD Lightning pulses by clamping it to an acceptable reference. It provides bidirectional protection.

The usage of the TESDA24VB17P1Q1 is in protected line, such as data line, control line, or power line. To minimize parasitic inductance in the board traces, all path lengths connected to the pins of TESDA24VB17P1Q1/TESDA24VB17P1M3 should be kept as short as possible.

Taiwan Semiconductor  (TSC), a global supplier of discrete power electronics devices, LED drivers, analog ICs and ESD protection devices, announces 600V low loss rectification for power electronics systems.

The current ranges are from 15A to 45A in Bridge configurations and 10 to 30A with ThinDPAK and D2PAK-D packages. The low Vf  reduces conduction loss to increase efficiency and power density. TSC provides SPICE, thermal and 3D mechanical models on our website to simplify designs.  Target applications range from AC/DC converters in bridge, totem pole or bridgeless topologies for mains connected power electronics such as Server power, Telecom power and Charging systems.

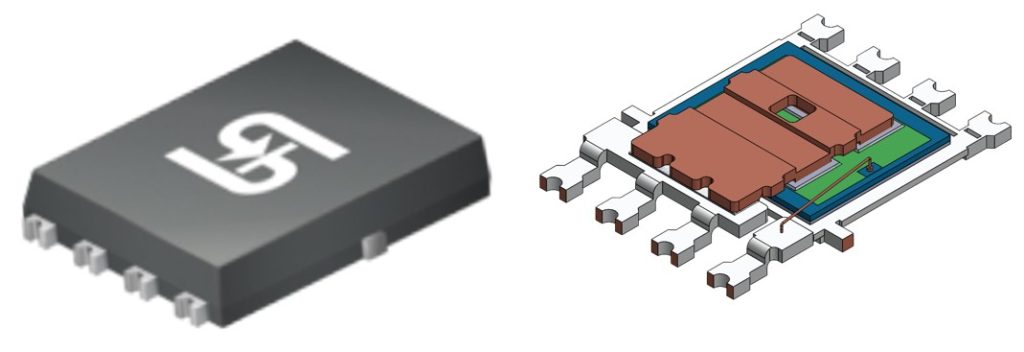

Taiwan Semiconductor introduces PerFET 80V and 100V technology in the PDFN56U (5mm x 6mm) single and dual packages for high power, high switching frequency and high-performance requirement automotive applications. A portfolio of 18 items, including both normal-level (10V) and logic-level (5V) gate drive types, enables customers to select the best-fit product for their design. All of this enables the best-in-class FOM (RDS(on) * Qg) and Performance in the market.

The PDFN56U wettable flank package offers improved solder joint quality and enhanced AOI accuracy. Additionally, it is highly footprint-compatible with the majority of 5mm x 6mm packages on the market.

TSC TLDxAH series Uni-directional Load dump TVS packaged in TO-263AB that could meet ISO7637-2 and ISO 16750-2 criteria. It is compatible with High-end circuits where low leakage current and high junction temperature are required to provide reliability and stability over time.

SUPER CLAMP series TVS diodes with snapback characteristics features a superior optimized clamping ratio between the designated breakdown voltage and clamping voltage. And a wide operation range of -55°C to 175°C meeting the automotive applications. This optimized clamping ratio provides a lower clamping voltage to protect the circuit at a much higher peak pulse current than conventional TVS diodes.

Taiwan Semiconductor (TSC), a global supplier of discrete power electronics devices, LED drivers, analog ICs and ESD protection devices, announces an additional 600V Ultra fast – high efficiency rectifier for power electronics systems.
The current ranges are from 6A~15A within the ThinDPAK package. Switching speeds of either (trr<25ns) or (trr<60ns) can be selected for different applications to achieve the power efficiency needed. ThinDPAK package is footprint compatible with standard D-PAK offering a low profile with lower thermal resistance providing a drop in upgrade path for existing applications. TSC provides SPICE, thermal and 3D CAD models on our website to support fast simulation.
